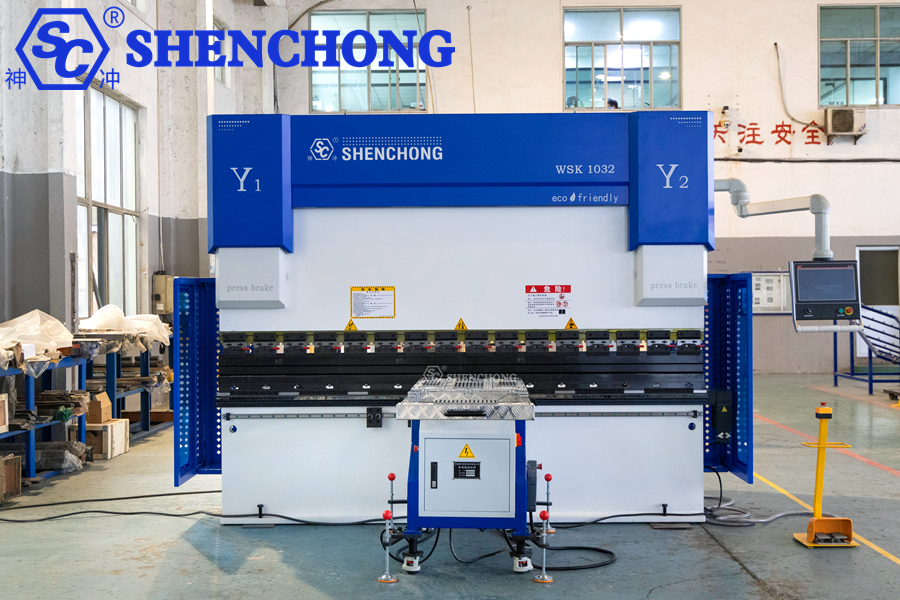

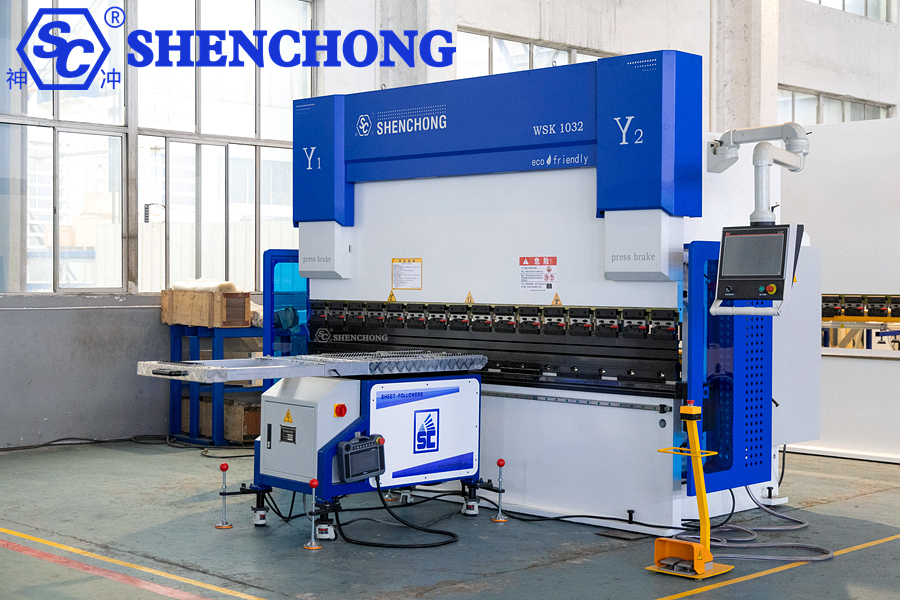

SC 100T 3200MM CNC Press Brake With Sheet Follower For Sale

SC 100T 3200MM CNC Press Brake Machine with sheet follower is a medium-sized, highly versatile sheet metal bending machine suitable for high-precision forming of carbon steel, stainless steel, aluminum plates, and other metal sheets.

100T 3200MM CNC press brake with sheet follower system is equipped with a follow-up bending material support device on the standard model. This system automatically supports the sheet metal during bending, effectively solving the sagging problem when bending long or heavy plates, significantly improving bending accuracy, operational safety, and production efficiency.

Widely used in: Sheet metal processing plants, Electrical cabinets/distribution cabinets, Ventilation ducts, Machinery housings, Stainless steel products, and Structural components for automated equipment.

1. CNC Press Brake Core Structure and System Details

1) Machine Body Structure

Integrated Welded Frame:

Constructed from high-quality steel plates, welded as a single unit and treated with annealing or vibration aging to eliminate internal stress, ensuring long-term stability and no deformation.

High-Rigidity Side Plates + Reinforcing Rib Structure:

Improves the machine’s resistance to eccentric loads and ensures consistent bending angles throughout its length.

2) Hydraulic System

Dual-Cylinder Synchronous Structure:

Left and right cylinders are independently controlled, with high-precision displacement feedback for stable synchronization.

High-Quality Hydraulic Components:

Employs domestic or imported hydraulic valve assemblies, ensuring smooth operation, low noise, and fast response.

Intelligent Pressure Control:

The CNC system automatically calculates bending pressure to prevent overload and protect the mold and equipment.

3) CNC System (Optional Configuration)

Common Configurations:

ESA S630
SC EL15T

Features:

Automatic calculation of bending angle, stroke, and pressure
Supports storage of multiple processes
Die parameter management
Automatic return stroke and automatic positioning

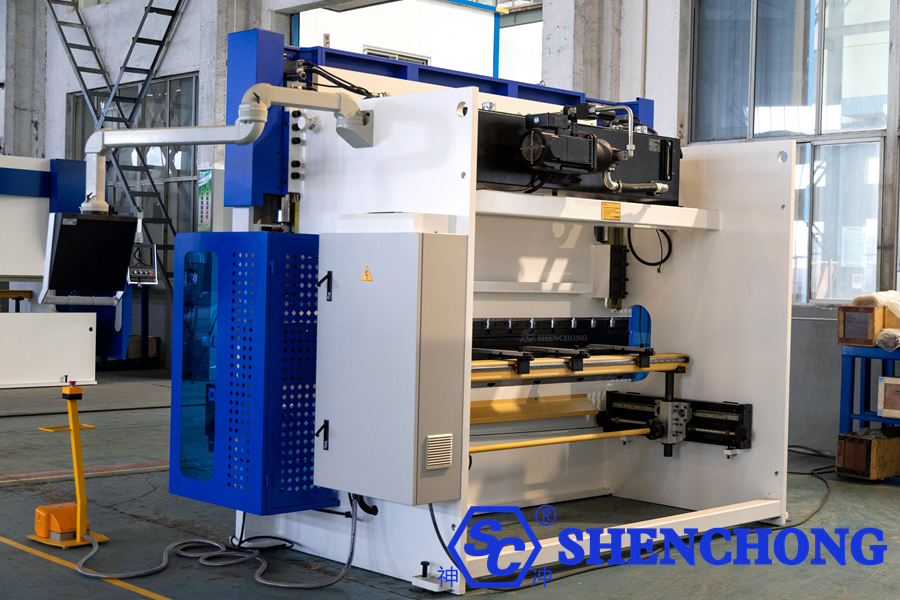

4) Backgauge System

High-precision ball screw + linear guide
Servo or stepper motor drive
Positioning accuracy up to ±02 mm
Supports multi-axis linkage (X, R, Z, Z1/Z2)

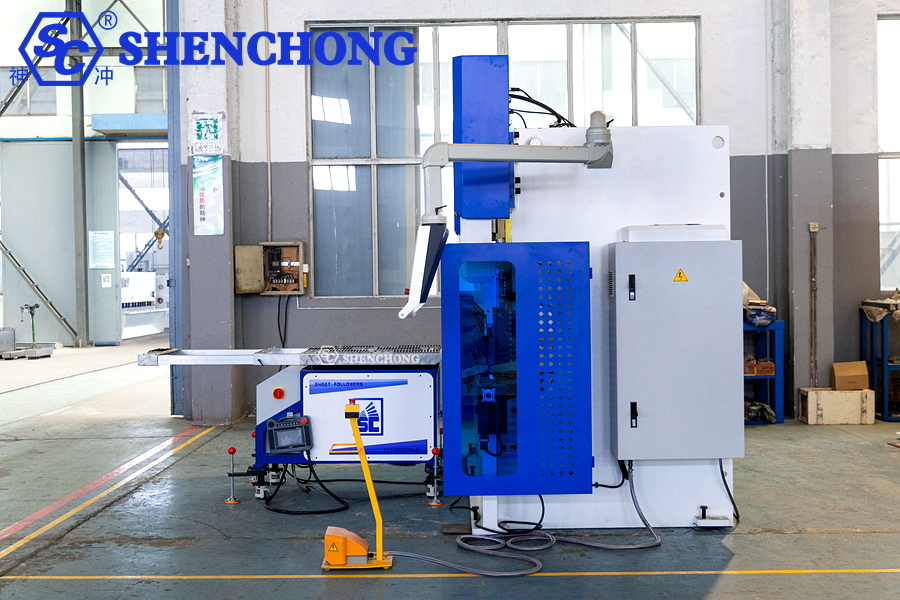

2. Bending Follower Support System

1) CNC press brake with sheet follower system principle

The follow-up support system rises and falls synchronously with the slider during the bending process, supporting the sheet material in real time and ensuring that the sheet material remains in a stable stress state throughout the entire bending process.

2) System Components

Follow-up support arm
Rollers or stainless steel support plate
Servo drive mechanism
Linked control with CNC system

3) Core Advantages

Prevents sheet metal sagging

Especially suitable for bending 2.5–4mm thick plates and long stainless steel plates.

Significantly improves bending accuracy

Reduces human error in material handling, resulting in better angle consistency.

Reduces labor intensity

Large sheet metal bending can be completed by a single person.

Improves safety

Reduces the risk of work-related injuries caused by manual lifting and support of plates.

3. CNC Press Brake With Sheet Follower Equipment Advantages Summary

Bending length 3200mm, wide applicability
100-ton pressure, covering mainstream sheet metal thicknesses
Follow-up support system, balancing efficiency and accuracy
Mature and stable CNC system, easy to learn and use
Supports various configurations and non-standard customization

4. Typical Application Scenarios

Distribution cabinet side panels/door panels
Racks, enclosures and other structural components
Stainless steel bent parts
Ventilation duct flanges, folds
Sheet metal housings for automated equipment

5. Suitable Users Customer Types

Medium to large sheet metal processing enterprises
Users who value bending accuracy and efficiency
Factories that need to reduce reliance on manual labor
Customers with stainless steel or long plate bending needs

The 100T 3200MM CNC press brake machine is a high-performance piece of equipment designed for mid-to-high-end sheet metal processing needs. It employs a high-rigidity integral welded frame and CNC synchronous control technology to ensure long-term stable operation and high-precision bending performance. It is widely applicable in the manufacturing of cabinets, electrical enclosures, mechanical housings, and structural components.

The follow-up bending support system rises and falls synchronously with the slider in real time during the bending process, effectively supporting the weight of the sheet metal and preventing sagging deformation during the bending of long and thick plates. This significantly improves the consistency of bending angles and processing stability.

SHENCHONG SC CNC press brake with sheet follower significantly reduces the manual material support intensity, allowing a single person to efficiently complete the bending of large-size sheets, while simultaneously improving production safety and batch processing efficiency.
