WGK series high speed mini press brake is a kind of hydraulic press brake with single oil cylinder structure. Its standard configuration is 4 axis, CNC control the ram (Y axis), control the backgauge forward and back (X axis), control the backgauge up and down (R axis), control the backgauge finger movement (Z axis).
The unique advantage for WGK high speed press brake is that approaching speed can reach 300mm/s, which is almost double time faster than the normal cnc press brake.
As a professional high speed press brake manufacturer, we have mini press brake for sale: 20 Tons 1000mm press brake, 20 Tons 1250mm press brake, 30 Tons 1000mm press brake, 30 Tons 1250mm press brake.
Model
Nominal Pressure (kN)
Working length (mm)
Housing Distance (mm)
Throat Depth (mm)
Stroke (mm)
Open Height (mm)
Main motor (Kw)
Machine size LxWxH (mm)
20/1000
200
1000
1080
100
150
300
2.2
1740x1170x1950
30/1000
300
1000
1080
100
150
300
4
1750x1200x1950
20/1250
200
1250
1330
100
150
300
2.2
2000x1170x1950
30/1250
300
1250
1330
100
150
300
4
2010x1200x1950
High Speed Mini Press Brake Features
Using Mitsubishi control system, the new product with highly special designed.
The machine has high accuracy and high strength; ram stroke (Y) and back gauge(X, R, Z) are controlled by CNC system, back gauge is adopted ball screw and rolling guide way, X accuracy (±0.05mm), R accuracy (±0.1mm), Z accuracy (±0.1mm).
The back door open the door machine adopt totally closed off, machine on both sides of the use of semi closed transparent protective power break.
High Speed Mini Press Brake Advantages
Super fast bending speed. Approach speed up to 300mm/s.
Advanced configuration, high precision ,high efficiency and low noise, suit for the small
Standard laser protection device to protect the operator.
High Speed Mini Press Brake Machine Configuration

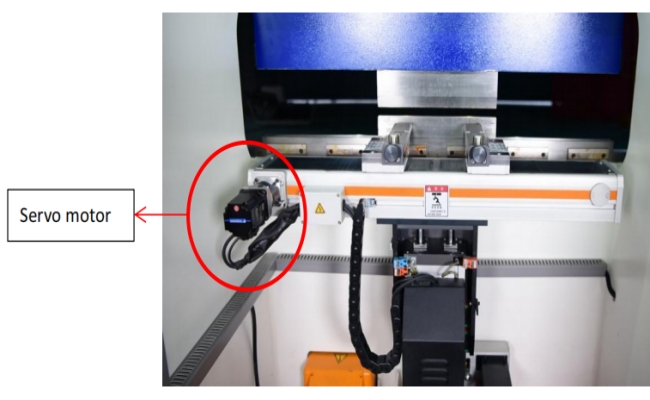

Backgauge

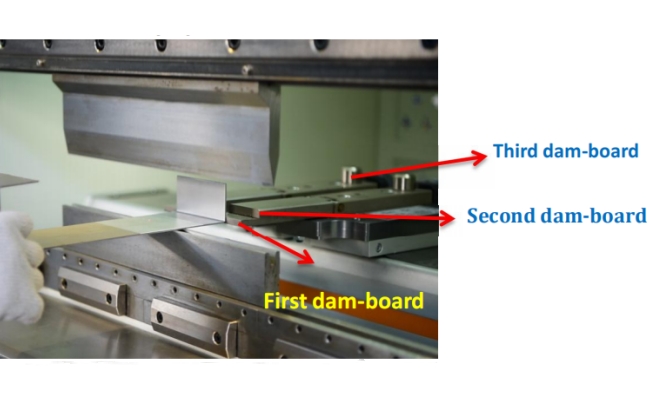

Press Brake Tools

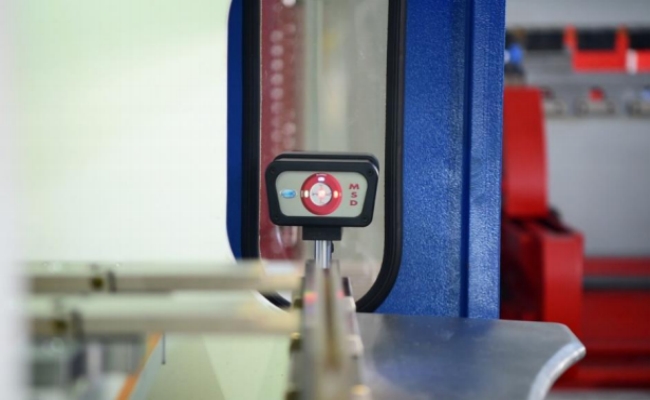

Laser Protection

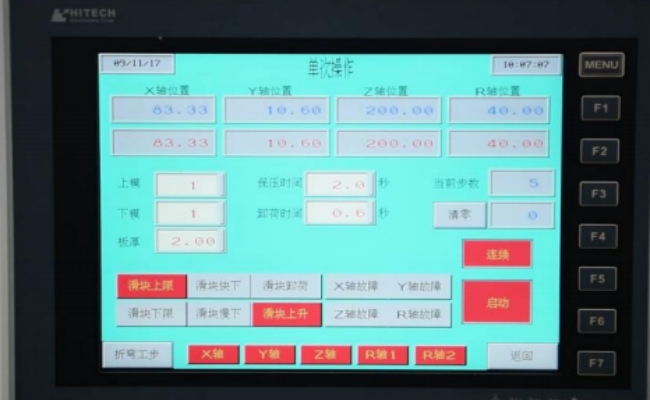

Touch Screen
Machine Application
High speed press brake is designed to bend small workpieces. It is suitable to bend thin plate maximum thickness 2mm and plate length 1250mm mild steel. Since its approaching speed is 300mm/s, high speed mini press brake is very suitable for sheet metal processing factories that bend electric cabinet, boxes, and batch production small workpieces.
