CNC V Grooving Machine

CNC V Grooving Machine - SC SHENCHONG

The CNC V grooving machine is used to perform a certain depth V-shaped grooving on the bending part of stainless steel plates, mild steel plates, aluminum plates, copper plates, composite plates and other plates below 6mm before bending. The workpiece produced by this process has a small bending radius, no obvious color change, low bending forming force, and reduces the straightness error of narrow and long workpiece bending edges. And using a universal mold on a regular bending machine can bend workpieces with complex cross-sectional shapes.

CNC V grooving machine is widely used in industries such as stainless steel decoration, elevators, anti-theft doors, chassis and cabinets.

SC, the renowned V Grooving Machine manufacturer in China, leads the industry with its extensive range of high-precision machines. Our portfolio unveils a variety of advanced models including Vertical V Grooving Machines and Horizontal V Grooving Machines, each boasting unique benefits and capabilities tailored for diverse operational needs

CNC V Grooving Machine For Sale

CNC V grooving machine can be divided as horizontal V grooving machine and vertical V grooving machine.

The structure of the CNC vertical v groove machine is similar to the door frame type, which uses a fixture to pull the sheet metal to the corresponding processing position. After being pressed by the clamp, the V-groove is processed through tool movement, which can be understood as the movement of the sheet metal combined with tool processing, and the tool only performs linear motion of the processing trajectory.

The processing principle of a CNC horizontal V groove machine is opposite to that of a vertical V grooving machine. It is equipped with a large worktable, and the sheet is fixed on the table by a pressure clamp. The cutting tool is an automatic mechanical structure of a gantry frame. First, the tool moving device on the gantry frame locates the processing route on the Y-axis, and then the gantry frame drives the cutting tool to process the V-groove on the X-axis. It can be understood as fixing the sheet metal and processing it through the movement of the cutting tool.

Both types of grooving machines have their own advantages and disadvantages, and the specific choice of equipment for processing depends on industry demand and workpiece characteristics.

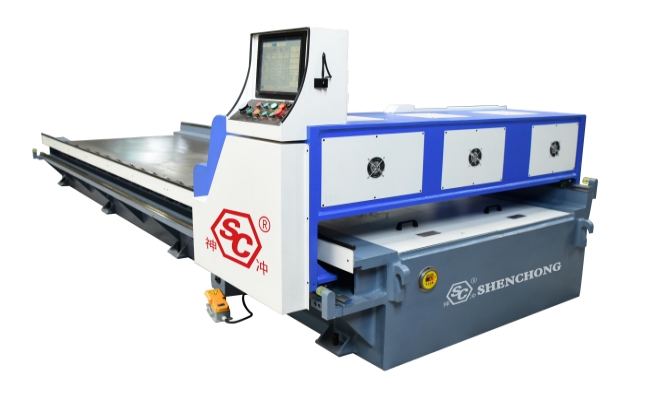

RGEK Servo CNC Horizontal V Grooving Machine For Sale

Model	AKJ-1325F2	AKJ-1530F2	AKJ-1545F2
Cutting Range	1300*2500mm	1500*3000mm	1500*4500mm
Laser Type	Fiber laser
Laser Power	1kw-12kw

CNC Horizontal V Grooving Machine Feature

Gantry style, convenient for loading and unloading. Air cooling without environmental pollution, three+1 axis CNC, servo control, achieving fully automatic operation and processing, improving the accuracy of groove machining.
Using hydraulic control system as power, it has high pressure, reliable fastening force, low noise, and low energy consumption.
Adopting tin bronze helical gears, 45 steel forged quenched and tempered helical racks, and QH silent guide rail transmission, the movement speed can be adjusted by frequency conversion, and the cutting process is smooth.
The countertop has a self-healing function, and during use, customers can self plane the countertop according to their own requirements to ensure machining accuracy.
The CNC program design is reasonable and easy to master, just input the keyboard and machining program to complete. According to the different materials, the processing speed can be adjusted with a knob, making it easier for operators to operate.

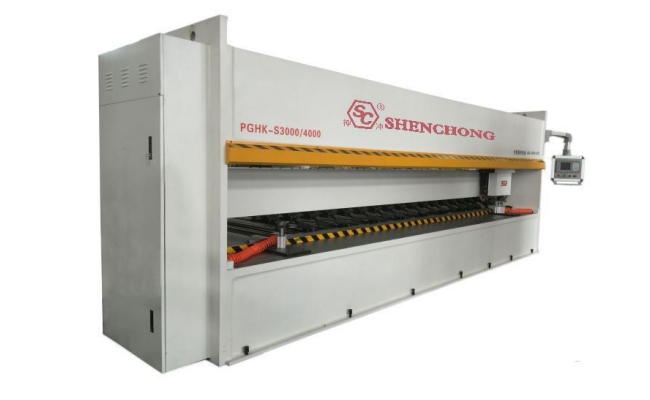

RGHK Servo CNC Vertical V Grooving Machine For Sale

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

CNC Vertical V Grooving Machine

Whole steel plate welding, high-strength bolt connection, strong seismic resistance, using a large tempering furnace to eliminate stress, good stability.
Adopting a rear feeding structure and a clever design of a universal ball, the equipment will not damage the surface of the sheet material during feeding and discharging.
As a power transmission component, high-precision ball screw has high machining accuracy, low noise, and low energy consumption.
The worktable of the machine tool is made of carbon tool steel, with a hardness of HRC55 or above after quenching. The worktable has minimal wear and can be replaced.
Three axis CNC, servo control, achieving fully automatic operation and processing, improving the accuracy of groove machining.
Adjustable movable workbench, ensuring accurate slotting depth for each part.
The CNC program design is reasonable and easy to master, just input the keyboard and machining program to complete. And there are multiple chain guarantee measures to ensure the safe operation of the equipment.

Why Use SC CNC V Grooving Machine?

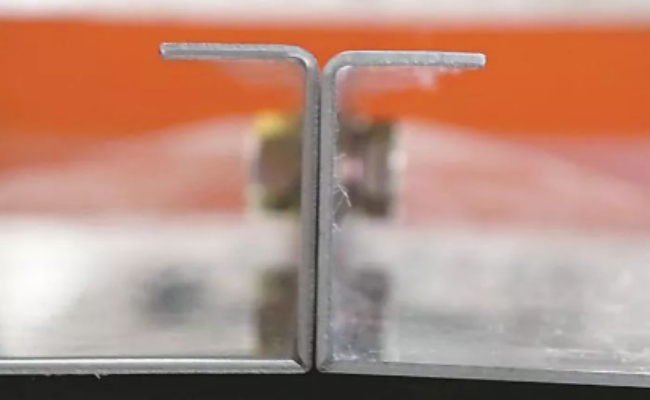

Effect Diagram of Groove R Angle

As the diagram shown, by using CNC V grooving machine, the bending R angle can be smaller, which is more beautiful.

Frequently Asked Questions

What technical parameters have significant impact on CNC V groove machine?

Maximum width and length of slotted sheet metal: This parameter affects the maximum size that the equipment can process metal sheets.
Maximum thickness of slotted sheet metal: This parameter affects the maximum thickness that the equipment can process metal sheets.
Minimum distance between V-shaped groove and edge: This parameter reflects the minimum distance between the groove edge and the edge of the board material when processing metal sheets. This distance is mainly used for the groove machine to clamp the groove. In addition to the safety distance set by the manufacturer, the smaller the minimum distance between the V-shaped groove and the edge, the smaller the minimum distance between the groove edge and the edge of the board material.
Cutting speed: This parameter reflects the speed at which the cutting tool moves in a straight line when processing metal sheets. The larger the value, the higher the machining efficiency of the equipment.
The resolution and positioning accuracy of the left and right, up and down movement of the tool holder: Each parameter mainly reflects the machining accuracy of the equipment. Currently, the minimum positioning accuracy that Chinese technology can achieve is ± 0.01mm.
In addition to the equipment parameters mentioned above that affect CNC V groove machining, another important parameter is the tool. The quality and quantity of cutting tools directly affect machining efficiency and tool wear rate. Traditional slotting equipment is all three blade simultaneous cutting, but the current technology has changed to four blade simultaneous cutting, with a distance of 0.1mm between each blade. The maximum depth of a single slotting with four blade simultaneous cutting can reach 0.6mm. In order to ensure the quality of slotting and extend the service life of cutting tools, the depth of a single slotting set by general enterprises is 0.4-0.5mm. The latest developed cutting tools in the industry are all alloy knives, with a service life of 2500-3000 meters for processing stainless steel materials.

Can you talk about the advantages and disadvantages of vertical CNC v grooving machine and horizontal CNC v grooving machine?

Comparison item	Vertical CNC V Grooving Machine	Horizontal CNC V Grooving Machine
Processing scope	When processing workpieces that need to be grooved around, if the workpiece is in a long strip shape, a workbench needs to be added to support the workpiece when processing short edges, which is inconvenient to operate	Three axis CNC machining, with a wide processing range, suitable for various large-sized and shaped workpieces
Workbench processing technology	The workbench is made of high-quality mold steel that has undergone overall heat treatment and is finely ground by a grinder, achieving a mirror like surface finish	The worktable is made of ordinary iron plates welded and processed, and the hardness of the workpiece is higher than its own. Grinding, damaged blades, etc. make the worktable bumpy (it needs to be regularly restored with self created functions)
Processing efficiency	The minimum distance between the V-shaped groove and the edge is 10mm, and the cutting speed is 40mmin, requiring the fixture to feed back and forth	The minimum distance between the V-shaped groove and the edge is 8mm, and the cutting speed is 50m/min or higher. The gantry and the tool operate simultaneously, without the need for reciprocating feeding, resulting in higher efficiency
Electric energy loss	The knife holder undergoes back and forth movement, resulting in minimal loss	The back and forth movement of the gantry and knife rest together results in significant losses
security	The vertical CNC grooving machine is equipped with hydraulic automatic clamping of workpieces, automatic positioning, and automatic operation. The operator should stay away from the moving parts of the machine tool	The workpiece is clamped within the motion range of the machine tool, and the gantry moves at high speed. The control part runs together with the gantry, and the operator needs to pay attention to safety during use
Overall effect	Due to the need for automatic feeding after gripping the workpiece, the iron filings generated by grooving often scratch the decorative surface. When processing large-sized workpieces, frequent alignment and movement are required, making this situation more likely to occur	During processing, the workpiece does not need to move and can be operated by a single person throughout the entire process. The decorative surface of the workpiece will not be scratched, ensuring surface processing quality (an important reason for use in the elevator industry)

Request Informations

Can you pls tell us your plate thickness and length? Our sales will recommend machine model for you.
