NC Plate Shearing Machine

NC Hydraulic Plate Shearing Machine

Brand: SC SHENCHONG

Model: QC11Y NC Plate Shearing Machine

NC Controller: ESTUN E21S

Price Range: $15000-$30000/Set

After Sale: 3 Years

Lead Time: 25-45 Working Day

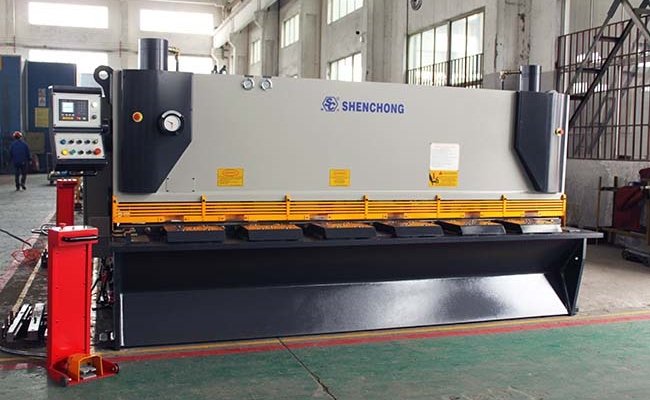

NC Hydraulic Plate Shearing Machine For Sale

SC NC plate shearing machine is the hydraulic guillotine shear with NC controller to digital controls the backgauge stroke. With this function, customers cut the plate quickly by NC hydraulic guillotine shear.

At the same time, QC11Y NC plate shearing machine with ESTUN E21S controller can save 50 programs (25 cutting steps), which helps operators quickly call and edit the cutting step programs.

When optimizing product design, SC SHENCHONG adopts dual nitrogen cylinder return stroke for hydraulic plate shearing machine model below QC11Y 16X6000MM, which the machine action is softer, the machine return stroke action is stable, and the noise is lower.

SC SHENCHONG adopts hydraulic cylinder for machine model above QC11Y 16X6000MM, which has large cutting force, can shear sheet plate quickly with perfect cutting result.

Model	Plate Thickness（mm）	Cutting Length （mm）	Throat Depth （mm）	Backgauge Stroke （mm）	Cutting Angle	Cutting times/min	Main Motor（kw）	Machine Size（mm）
									4×2000	4	2000	80	600	0.5°~2°	14	5.5	2600×1680×1750
									4×2500	4	2500	80	600	0.5°~2°	14	5.5	3125×1750×1765
6×2500	6	2500	80	750	0.5°~1°30′	14	7.5	3150×1840×1960
6×3200	6	3200	80	750	0.5°~1°30′	12	7.5	3850×1840×1995
6×4000	6	4000	80	750	0.5°~1°30′	10	7.5	4650×1840×2100
6×5000	6	5000	80	750	0.5°~1°30′	8	7.5	5650×2050×2400
6×6000	6	6000	80	750	0.5°~1°30′	8	7.5	6650×1980×2380
8×2500	8	2500	80	750	0.5°~2°	14	7.5	3135×1840×2075
8×3200	8	3200	80	750	0.5°~2°	12	7.5	3850×1990×2050
8×4000	8	4000	80	750	0.5°~2°	10	7.5	4650×1890×2075
8×5000	8	5000	80	750	0.5°~2°	7	15	5650×2050×2400
8×6000	8	6000	100	750	0.5°~2°	7	15	6805×2115×2715
10×2500	10	2500	100	750	0.5°~2°30′	10	15	3195×1915×2205
10×3200	10	3200	100	750	0.5°~2°30′	8	15	3895×1900×2235
10×4000	10	4000	100	750	0.5°~2°30′	6	15	4695×1970×2450
10×5000	10	5000	100	750	0.5°~2°30′	5	15	5700×2115×2715
10×6000	10	6000	100	750	0.5°~2°30′	5	15	6905×2115×2800
12×2500	12	2500	100	750	0.5°~2°30′	10	15	3195×2000×2210
12×3200	12	3200	100	750	0.5°~2°30′	8	15	3895×1950×2240
12×4000	12	4000	100	750	0.5°~2°30′	6	15	4710×1950×2485
12×5000	12	5000	100	750	0.5°~2°30′	5	30	5750×2115×2800
12×6000	12	6000	100	750	0.5°~2°30′	5	30	7150×2300×3100
16×2500	16	2500	100	750	0.5°~2°30′	8	15	3215×1970×2340
16×3200	16	3200	100	750	0.5°~2°30′	7	15	3915×1970×2455
16×4000	16	4000	100	750	0.5°~2°30′	6	15	4715×2010×2590
16×5000	16	5000	100	750	0.5°~3°	5	22	6000×2300×3000
16×6000	16	6000	100	750	0.5°~3°	5	37	7250×2400×3100
20×2500	20	2500	100	750	0.5°~3°	6	22	3235×2020×2465
20×3200	20	3200	120	750	0.5°~3°	5	30	4150×2065×2755
20×4000	20	4000	120	750	0.5°~3°	4	30	4955×2125×2885
20×5000	20	5000	120	750	0.5°~3°	4	37	6000×2300×3050
20×6000	20	6000	120	750	0.5°~3°	5	37	7150×2450×3280
25×2500	25	2500	120	750	0.5°~3.5°	5	37	3465×2130×2710
25×3200	25	3200	120	750	0.5°~3.5°	5	37	4120×2200×3000
25×4000	25	4000	120	750	0.5°~3.5°	4	37	4950×2200×3150
30×2500	30	2500	120	750	0.5°~3.5°	4	37	3465×2170×2770
30×3200	30	3200	120	750	1°~3.5°	3	37	4200×2300×3200
40×2500	40	2500	80	750	1°~4°	4	37×2	3770×2550×3400

NC Guillotine Plate Shearing Machine Features

The upper tool holder runs in a straight line downwards under the drive of the hydraulic cylinder. The upper and lower blades are both rectangular blades, and the blade gap can be manually or electrically adjusted quickly.
The shearing stroke is controlled by a time relay.
Electronic control adjustment of shear angle.
The forward and backward movement of the backgaugeis driven by a motor and displayed on the NC controller, while also the NC controller have a fine-tuning function.
Through the visible safety fence, the operator can easily cut the wire device through the light, which is safe and efficient.

NC Hydraulic Shearing Machine Advantages

Cost saving: Compared with laser cutting machine price, NC hydraulic guillotine plate shearing machine price is much cheaper.
High precision plate shearing machine: Dual chamber oil cylinder ensures that the shear angle does not change during the cutting, and the blade holder adopts an inclined structure, which is convenient for cutting and can improve the cutting accuracy. Can be cut in segments (adjust LCD display time)
Long service life: The NCguillotine shearing machine has four rectangular blades that can be replaced and have a long service life. SC SHENCHONG use standard 6CrW2Si blade to cut mild steel and suggests to use Cr12MoV blade to cut stainless steel plate.
Easy operation: ESTUN E21S digital display system, simple operation, high cutting efficiency

QC11YK High Speed Hydraulic Shearing Machine For Sale

QC11YK high speed NC shearing machine is designed for customers who pursue high efficiency and productivity. High speed shearing machine is an updated series of NC hydraulic shearing machine. The cutting speed is twice that of a regular hydraulic guillotine shearing machine, greatly improving work efficiency.

During the high speed shearing process, the deformation of the frame is relatively small, which correspondingly improves the shearing accuracy.

High Speed Guillotine Shear Advantages:

Cutting straight line accuracy: ± 0.05mm.
Backgauge speed: 100mm/s
Repeated positioning accuracy: ± 0.05mm
Arbitrary positioning accuracy: ± 0.08mm
SC SHENCHONG’s revolutionary technology has improved the cutting speed of the shearing machine. The cutting speed is 20-60 times/min, which is 10-20 times/min faster than the speed of general metal plate shearing machines.
QC11YK hydraulic high-speed shearing machine reduces the impact and wear time of the blade edge through high-speed cutting, thereby improving the service life of the blade.
The hydraulic cooling system ensures long-term operation and can work continuously for 24 hours.

NC Hydraulic Plate Guillotine Shearing Machine Configuration

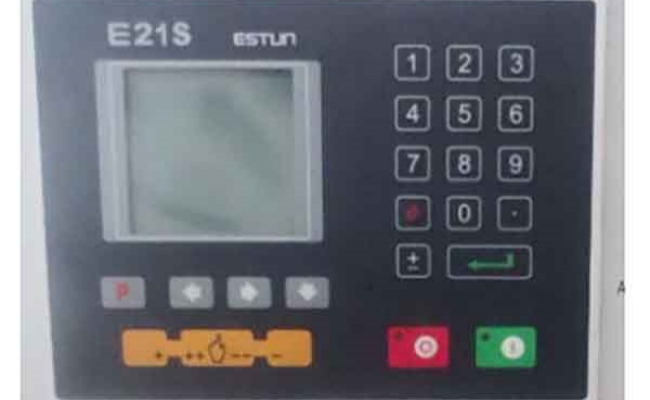

ESTUN E21S

Estun NC-E21S go-to programmable hardened screw back-gauge 750mm travel with fine adjustment.

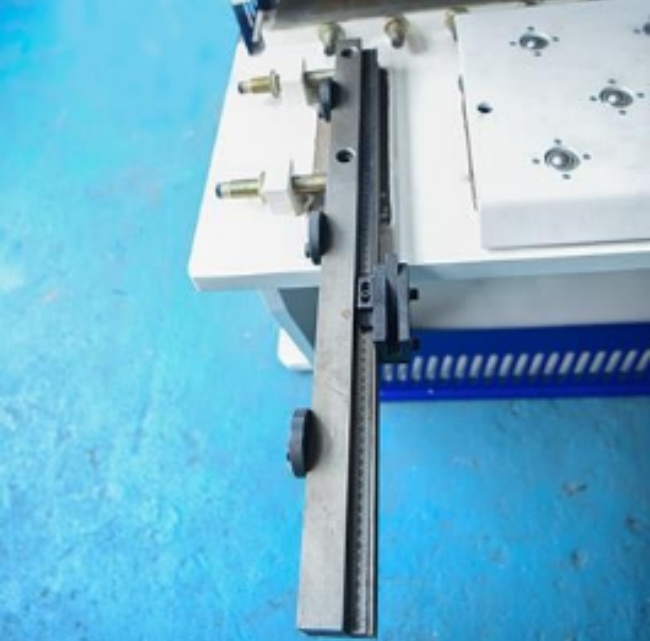

Side Supporter With Ruler

Side supporter with ruler of plate shearing machine helps to ensure the sheet plate 90 degree feed into the machine.

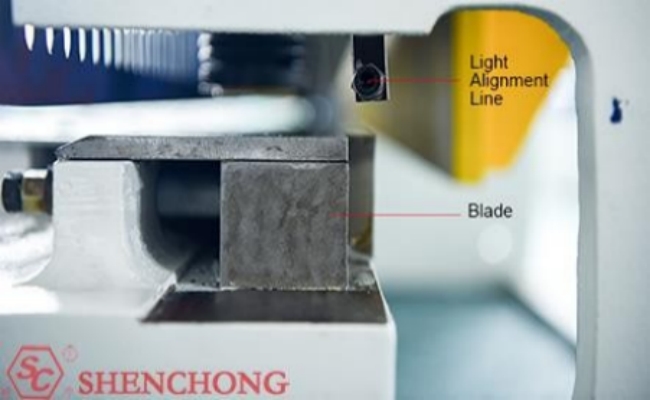

Light Alignment

Every set of SC plate shearing machine has the light alignment device as the standard configuration. The light alignment line helps the operator to improve the shearing precision.

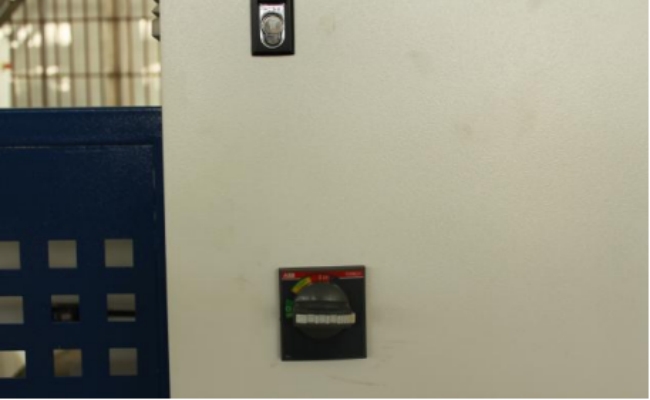

Electrical Cabinet With ABB Switch Power Off

SC SHENCHONG adopts electrical cabinet with ABB switch power off as standard configuration to protect the operators.

Why choose SC?

Professional Hydraulic NC Plate Shearing Machine Factory

As a NC hydraulic shearing manufacturer, SC SHENCHONG has more than 25 years plate shearing machine production experience, and we have more than 20 years exporting experience. During the years of design, manufacturing, service, we provide stable high quality NC hydraulic guillotine shear and fast respond after-sale. SC SHENCHONG focus on improve shearing machine types, and we have high speed shearing machine, high precision shearing machine, front feeding plate shearing machine, cnc plate shearing machine, to meet all cutting requirements. Currently we can proudly say that SC SHENCHONG plate shearing machine is No.1 brand in China high-end shearing machine market and we have more than 60% market share in big capacity plate shearing machine.

Experienced Engineer Teams And Service Teams

There are many plate shearing machine factories in China, but why SC plate shearing machine price is much higher than them?

For every 0.01mm increase in accuracy, higher manufacturing costs and more sophisticated manufacturing processes are required. SC SHENCHONG is the leading company in the field of hydraulic guillotine shearing machines, and our engineering team has been constantly improving the quality of the machines. Our machine structure design has always been imitated and never surpassed. SC service team provides you with more professional pre-sales, in-sales, and after-sales quality assurance.

Request Informations

Can you pls tell us your plate thickness and length? Our sales will recommend machine model for you.
